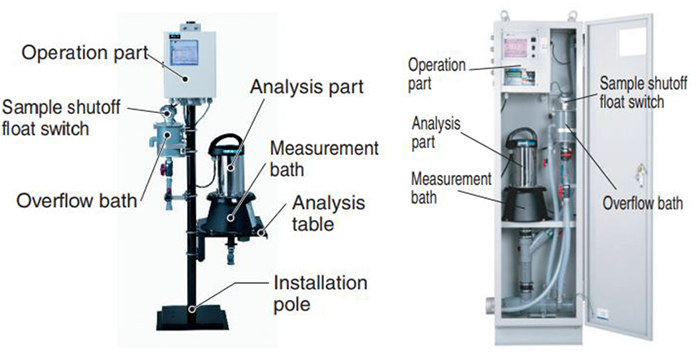

Effluent Quality Monitoring System

EQMS is a facility to measure pollutants such as Chemical Oxygen Demand (COD), Total Phosphates (TP), Total Nitrogen (TN) etc. The required parameters are customized according to the type of factory and discharge regulations. This product adopted HORIBA’s proprietary rotary cell length modulation method, a measuring technique incorporating 25 years of expertise. This method is the landmark because cell length modulation and wiper cleaning are performed imultaneously. Using this method, stable data can be obtained constantly for long periods even in harsh drainage environments. Using this device the parameters that can be monitored are COD, BOD, TSS, pH. OPSA-150 also excels in easurement of both low and high concentrations. We supply the other Horiba manufactured portable devices like Industrial pH meter, Industrial ORP meter, Industrial Conductivity meter, sanitary conductivity meter, resistivity meter, dissolved oxygen meter and residual chlorine meter.

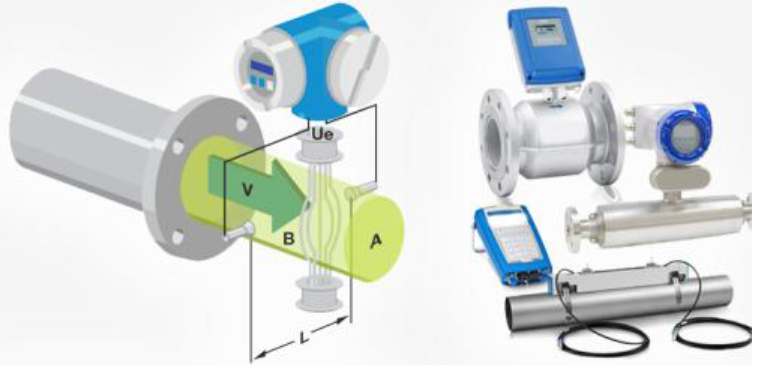

Flow Meters

Flow Meter design meets the demands of a very wide range of applications in industries including the chemical, pulp & paper, water and wastewater, minerals and mining, iron, steel and metals, pharmaceuticals and oil & gas industry. This product is Robust and fully welded construction. Standard solutions for the widest range of industrial applications will be supplied. Engineered solutions for very demanding applications We are supplying Magnetic Inductive Flow Meter, Vortex Flow Meter, Mass Flow Meter, Variable Area Flow Meter, Ultrasonic Flow Meters.

Features

  • Corrosion, erosion / abrasion resistant and leak tight electrodes. Specials on demand
  • External coatings for offshore or subsoil installation.
  • Reliably measurement under very demanding conditions: including high tempera tures up to 180C / 356F,
    pressures up to 2500 bar, high solids contents (up to 70%)

PH Electrode

liquid filled pH electrode, specially designed for pH measurement in pure and ultra pure water applications. The three diaphragm design ensures adequate outflow of liquid electrolyte for reliable pH measurement in pure water having a low-ionic strength.

Features

  • Easy installation in bypass pipelines using flow through chamber.
  • Detachable cable connector ensures easy installation and trouble-free maintenance.
  • Use of special low-noise, co-axial shielded cable, results in minimized effects of stray voltage.
  • Special measuring Glass ensures more easily reproducible measurement results.

VOC Meter

Smart Gas Transmitters are universal transmitters with plug & play sensor technology. They are capable of accepting more than 100 smart gas sensors. Its non-intrusive calibration helps customers to calibrate the transmitters in hazardous area without opening the transmitter thus reducing the down time for calibration. Alternatively the smart gas sensors can be plugged out and calibrated in the lab and can be put back on the transmitters.

Trace Level Turbidity Analyser

Trace Level Measurements with EPA Compliance 90 degree scattered light method. The turbidity sensor of the FMTSC-10 (E) uses the 90 degree scattered light method, a global EPA standard. Built-in wiper cleaning system The built-in wiper cleaning system easily keeps the lenses clean. Sapphire glass optical windows The optical windows are made of hard-toscratch sapphire glass. This facilitates scrubbing of the window surface to keep the
turbidity sensor clean. The compact design makes installation easy.
